Ningbo Xin Chang Machinery Co.,Ltd
Material: Carbon Tool Steel
Processing Method: Punching And Shearing Mould
Technics: Cutting Die
Process Combination: Single-Process Mould
Manufacturing Technology: Automation Technology
Mold Cavity Technology: CNC Milling
Milling Speed: Normal Speed
Parts Detection Method: Measurement Of Three Axis Nc
After-sales Service: Life Long
Fin Stock Thickness Range: 0.1-0.25mm
Distance Between Holes In Row: 25-38mm
Fin Shape: V-Wave
Standard Production Rate: 150-180 Strokes/Min
Transport Package: Wooden Case
Specification: export standard
Trademark: xinchang
Origin: China
생산 능력: 500 Set / Month
사용자 정의: 사용 가능
보증: 12 개월

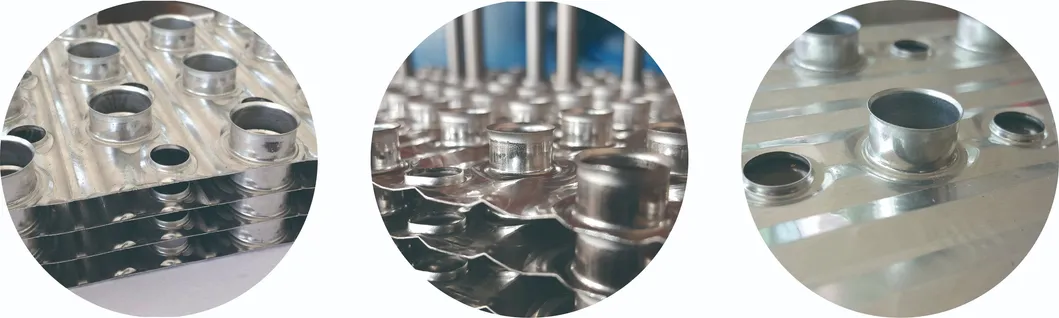

신청: Evaporator Fins
지원에 대한 지원: 500 Set / Month
| Item | ¢9.52×12R×2P | ¢12×6R×2P | ¢15.88×6R×2P | |
| 1 | Type die | ribbon | ribbon | ribbon |
| 2 | Fin shape | v-wave | v-wave | v-wave |
| 3 | Number of rows | 12R | 6R | 6R |
| 4 | Distance between holes in row | 25mm | 30mm | 38mm |
| 5 | Distance between rows | 21.65mm | 25.98mm | 32.9mm |
| 6 | Pattern | staggered pattern | staggered pattern | staggered pattern |
| 7 | Feed progression | 25mm | 30mm | 38mm |
| 8 | Hole size | 9.85mm±0.03mm | 12.4mm±0.03mm | 16.3mm±0.03mm |
| 9 | Material | Temper H22, A1100 Alloy/8011 or O temp | Temper H22, A1100 Alloy/8011 or O temp | Temper H22, A1100 Alloy/8011 or O temp |
| 10 | Fin stock thickness range | 0.1-0.25mm | 0.1-0.25mm | 0.1-0.25mm |
| 11 | Collar height range | 1.5-6.5mm | 1.5-7.0mm | 1.5-8.0mm |
| 12 | Reflare | individual adjustment for full range of collar heights | individual adjustment for full range of collar heights | individual adjustment for full range of collar heights |
| 13 | Collar base | provided | provided | provided |
| 14 | Slitter blades | blade positions in each row with quick change | blade positions in each row with quick change | blade positions in each row with quick change |
| 15 | Feed | internal hitch finger pull type | internal hitch finger pull type | internal hitch finger pull type |
| 16 | Cut off | guillotine type cut off with plain grind insert blades. | guillotine type cut off with plain grind insert blades. | guillotine type cut off with plain grind insert blades. |
| 17 | Standard production rate | 150-180 strokes per minute. | 150-180 strokes per minute. | 150-180 strokes per minute. |
| 18 | Guide post | Every guide post have lubrication | Every guide post have lubrication | Every guide post have lubrication |
우리는 FIN DIE에 JAPAN이나 SWEDEN의 최고 품질의 소재를 사용하도록 만들었습니다. 다음 양식은 FIN DIE에 사용된 일부 재료를 보여줍니다.
| Item | MATERIAL | HARDNESS | ORIGIN | |
| 1 | Punching convex and concave die | HAP40 | HRC62-64 | JAPAN |
| 2 | Slitting blades | HAP40 | HRC62-64 | JAPAN |
| 3 | Edge cutting blades | HAP40 | HRC62-64 | JAPAN |
| 4 | Crosscut blades | HAP40 | HRC62-64 | JAPAN |
| 5 | Drawing unloading plates of die | NAK80 | HRC40-42 | JAPAN |
| 6 | Drawing concave plates of die | NAK80 | HRC40-42 | JAPAN |
| 7 | Sub-plates of die | NAK80 | HRC40-42 | JAPAN |
| 8 | Fixed seat of crosscut knif | NAK80 | HRC40-42 | JAPAN |
| 9 | Drawing convex and concave die | SKD11 | HRC 62-64 | JAPAN |
| 10 | Collar convex and concave die | SKD11 | HRC 62-64 | JAPAN |
| 11 | Sub-die rack | PDS 5 | Pre-hardened steel | JAPAN |
| 12 | Fixed plates of die | PDS 5 | Pre-hardened steel | JAPAN |

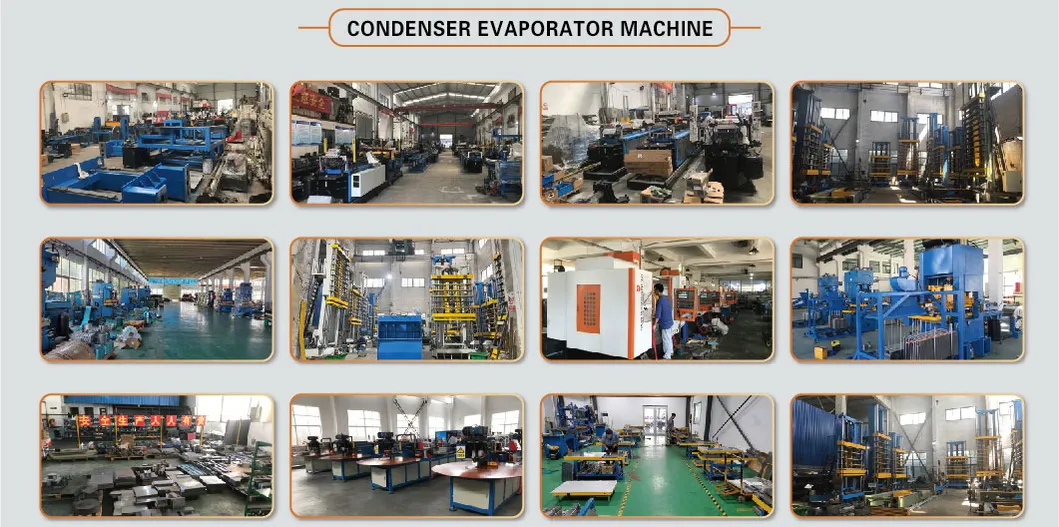

작업장
우리 Ningbo Xin Chang Machinery Co., Ltd는 마찰 용접기, 저항 용접기 및 열교환기 장비 분야의 전문 설계자이자 제조업체입니다. 우리 공장은 20년 이상 이 라인에 있으며 10명 이상의 수석 기계 및 전기 전문가를 보유하고 있으며 총 200명 이상의 직원이 있으며 우리 기계는 중국에서 유명합니다. 우리는 CCC, ISO9001 및 CE 인증서를 보유하고 있습니다.
